The experimental setup combines the matrix-isolation spectroscopy with
the molecular beam technique.
Both experimental methods are well established in molecular physics and
cluster physics.
Carbon nano-particles are generated by heating a graphite rod and quenching
the generated carbon vapour in a cooling-gas atmosphere (e.g. argon/hydrogen
mixture) to achieve supersaturation and to force condensation.
Together with the quenching gas, the primarily condensed carbon grains are extracted out of the condensation through the nozzle into a second chamber pumped separately to a pressure of about 10-3 mbar. Due to the drop in pressure during this supersonic expansion, the particles are decoupled from the gas and a further particle growth is stopped.
The sharp-edged skimmer peels a particle beam out of the free jet into a third chamber maintained at a pressure of about 10-5 mbar. In this chamber, particle samples for transmission electron microscopy (TEM) are collected from the beam.
The swivel-mounted cold CaF2 substrate (maintained at 13 K in a fourth chamber at 10-7 mbar) covers half of the beam cross section. The other half is used to monitor the mass rate by a quartz oscillator balance. The beam particles which reach the cold substrate are isolated in a growing solid argon matrix for spectroscopy in the 200 to 600 nm wavelength region. The diaphragm shuts half of the substrate which leads to a pure argon section for reference as well as thickness monitoring.
Click
here to see a photo of the apparatus
Click

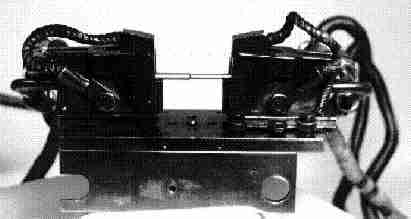

here to see a photo of the cluster source
